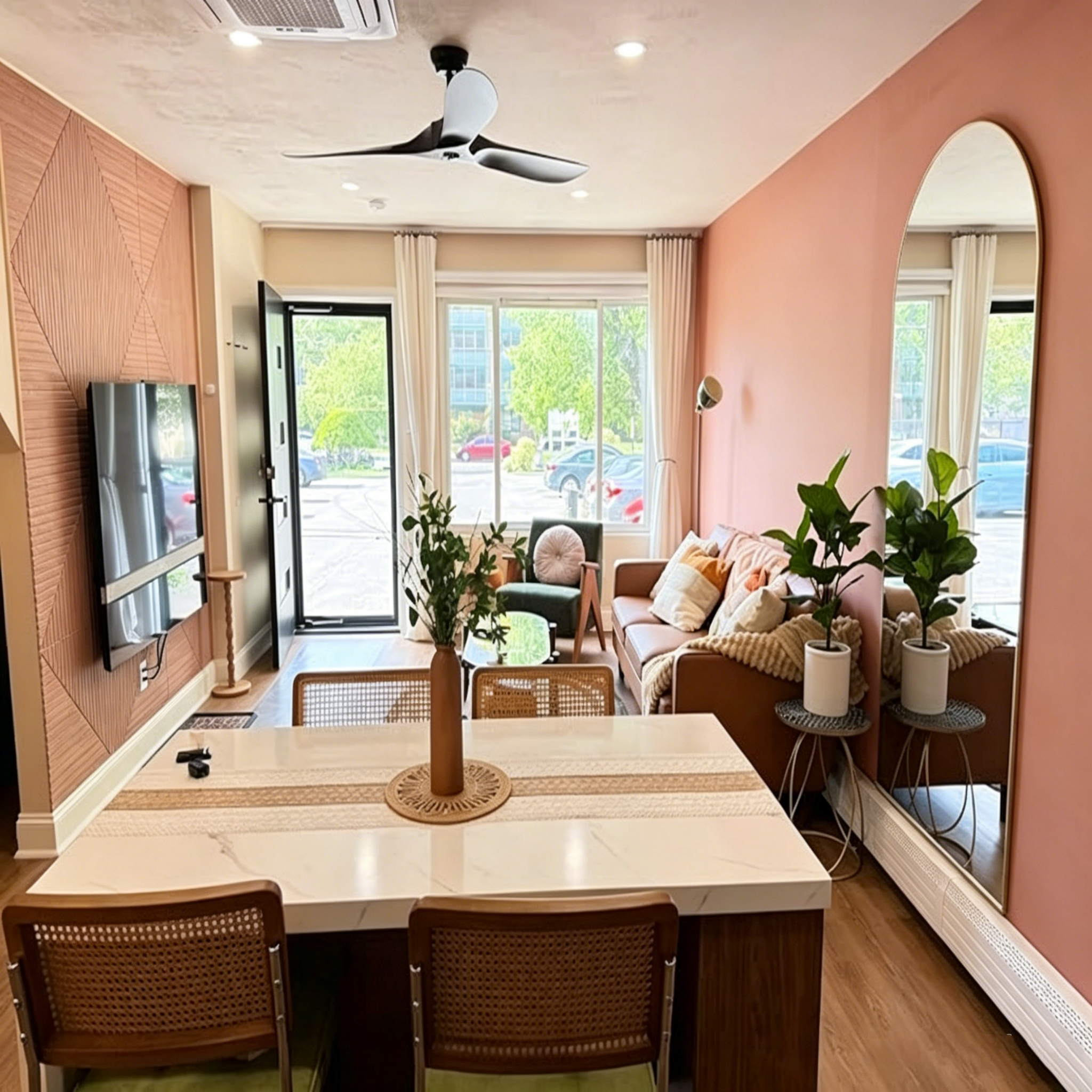

A ceiling cassette mini split offers the ultimate in discreet climate control. Unlike bulky wall-mounted units, a cassette tucks almost the entire air handler above the ceiling line, leaving only a slim, decorative grille visible in the room . The result is a flush, built-in appearance that preserves wall space and keeps your design clean .
But installing a ceiling cassette is more complex than a standard wall mount. This guide walks through the process step by step.
Step 1: Check Your Ceiling Space Before You Buy
Before ordering a unit, confirm your ceiling has enough hidden depth. Standard cassettes require roughly 10 to 14 inches of vertical clearance above the ceiling for the unit body, refrigerant lines, and drain piping .
Also, check your joist spacing. A traditional 24 x 24 inch square cassette is designed for 24-inch on-center joists or drop ceilings . If your home has standard 16-inch on-center joists, a slim or "one-way" cassette is a better fit, as these are engineered to fit between narrower joists .
Step 2: Create the Ceiling Opening & Install Hanging Hardware
Once you’ve confirmed the ceiling cavity is suitable, it’s time to cut.
Mark the opening: Use the paper template provided with the unit to trace the cut line.
Cut the drywall: Use a drywall saw or utility knife. Have a partner support the cutout so it doesn't fall and cause damage. The opening size varies by model but typically must accommodate a cassette body that is roughly 22.5 inches square .
Install hanging bolts: Suspend the unit from four 3/8-inch threaded bolts anchored into the ceiling framing. The mounting method depends on your ceiling type:
Concrete slabs: Use expansion bolts to fix the hanging hooks directly into the concrete .
Wooden joists: Secure angle iron or Unistrut channels across the joists, then attach the threaded bolts .
Steel beams: Install supporting angle brackets and mount the bolts through them .
Step 3: Suspend the Indoor Unit
Lift the cassette body and attach it to the hanging bolts. Use the supplied washers and nuts. Keep the nuts loose initially so you can level the unit later .
Critical step: The cassette must sit dead level. Even a slight tilt will cause condensate to pool in one corner, eventually overwhelming the built-in drain pump. Use a level in both directions, then tighten the nuts fully .
Step 4: Set Up Condensate Drainage
Ceiling cassettes sit above the conditioned space, so condensate must be lifted and pumped out. Most units include a built-in lift pump .
Connect the included drain hose to the unit’s drain adapter.
Run the discharge tube vertically a few inches above the cassette, then slope it continuously downward toward your discharge point (outside, utility sink, or floor drain) .
Avoid sags in the line—any low point will collect water and eventually block the drain .
Insulate all drain piping inside the ceiling cavity to prevent condensation and dripping .
Step 5: Route the Refrigerant Lines and Wiring
The line set (copper tubes, control wiring, and drain hose) must travel from the cassette to the outdoor condenser.
Plan the shortest route that avoids cutting joists or beams.
Drill a 3½-inch hole through the exterior wall for the line set, sloping slightly downward toward the outside to prevent water intrusion .
Connect the refrigerant lines to the cassette. Hand-tighten the flare nuts, then torque them to the manufacturer’s specifications with a torque wrench.
Connect the control wiring to the terminal block, following the supplied wiring diagram. Ensure proper grounding .
Pull a vacuum on the refrigerant lines to remove moisture and air before releasing the factory pre-charge .
Step 6: Install the Decorative Panel
The grille is the only part visible. Install it carefully.
Connect the grille’s ribbon cable to the cassette body (this powers the swing louvers and sometimes a filter-elevation function).
Hang the grille from the safety chains or clips provided, then lift it flush with the ceiling.
Drive the four corner screws evenly, in a cross pattern, until the grille sits flush with the ceiling .
Step 7: Final Checks & Test Run
Check for leaks: Use a soapy water spray on all refrigerant connections. Bubbles indicate a leak .
Test the drain pump: Pour water into the condensate pan and verify the pump activates and drains properly .
Power on and test: Run the unit in cooling mode for at least 30 minutes. Confirm proper airflow and that the condensate pump cycles normally.
Summary
Installing a ceiling cassette mini split is more demanding than a wall mount, but the result—a clean, hidden, and efficient HVAC system—is often well worth the effort. The keys to success are confirming your ceiling cavity depth, leveling the unit accurately, and routing the drain line without sags. With proper planning, you can enjoy the discreet comfort of a ceiling cassette mini split in almost any room.
